點擊圖片放大商品名稱:
套管
套管
詳細介紹:

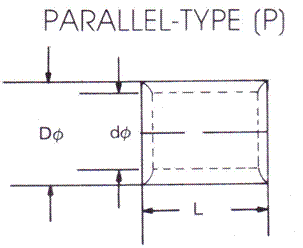

| ITEM NO | DØ | dØ | (B)L | (P)L | BOX |
| 1.25 | 3.3 | 2.3 | 15.0 | 7.5 | 8000 |
| 2 | 4.0 | 2.8 | 15.0 | 7.5 | 3000 |
| 3.5 | 5.0 | 3.6 | 15.0 | 7.5 | 4000 |
| 5.5 | 5.5 | 4.1 | 15.0 | 7.5 | 4000 |
| 8 | 6.8 | 5.0 | 21.0 | 10.5 | 1500 |
| 14 | 8.8 | 6.8 | 26.0 | 13.0 | 800 |
| 22 | 11.4 | 9.2 | 29.0 | 14.5 | 400 |
| 38 | 13.0 | 10.6 | 32.0 | 16.0 | 300 |
| 60 | 15.2 | 12.4 | 36.0 | 18.0 | 200 |
| 70 | 17.2 | 14.4 | 37.0 | 18.5 | 150 |
| 80 | 19.0 | 16.0 | 38.0 | 19.0 | 120 |
| 100 | 21.6 | 17.6 | 38.0 | 19.0 | 100 |
| 125 | 23.0 | 18.8 | 46.0 | 23.0 | 80 |
| 150 | 26.0 | 21.8 | 54.0 | 27.0 | 60 |
| 180 | 28.5 | 23.9 | 57.0 | 28.5 | 50 |
| 200 | 32.0 | 26.4 | 63.0 | 31.5 | 30 |
| 325 | 37.0 | 30.8 | 72.0 | 36.0 | 22 |
