點擊圖片放大商品名稱:
圓型端子
圓型端子
詳細介紹:

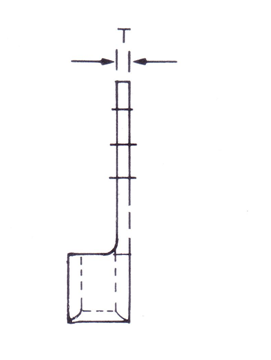

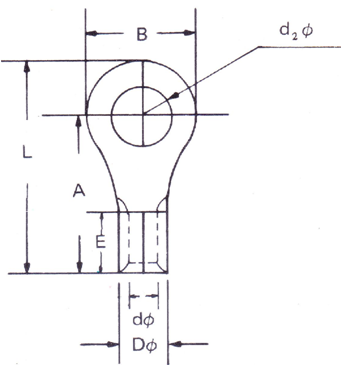

| ITEM NO | d2Ø | B | L | A | E | DØ | dØ | T | BOX |
| R1.25-M3 | 3.7 | 6.6 | 14.4 | 11.1 | 4.8 | 3.3 | 1.7 | 0.8 | 4000 |
| R1.25-M4 | 4.3 | 6.6 | 14.4 | 11.1 | 4.8 | 3.3 | 1.7 | 0.8 | 4000 |
| R1.25-4 | 4.3 | 8.0 | 15.8 | 11.8 | 4.8 | 3.3 | 1.7 | 0.8 | 4000 |
| R1.25-5 | 5.3 | 8.0 | 15.8 | 11.8 | 4.8 | 3.3 | 1.7 | 0.8 | 4000 |
| R1.25-6 | 6.4 | 12.0 | 21.8 | 15.8 | 4.8 | 3.3 | 1.7 | 0.8 | 2000 |
| R1.25-8 | 8.4 | 12.0 | 21.8 | 15.8 | 4.8 | 3.3 | 1.7 | 0.8 | 2000 |
| ITEM NO | d2Ø | B | L | A | E | DØ | dØ | T | BOX |
| R2-M3 | 3.7 | 6.6 | 12.3 | 9.0 | 4.8 | 3.9 | 2.3 | 0.8 | 3000 |
| R2-M4 | 4.3 | 6.6 | 12.3 | 9.0 | 4.8 | 3.9 | 2.3 | 0.8 | 3000 |
| R2-4 | 4.3 | 8.5 | 16.8 | 12.6 | 4.8 | 3.9 | 2.3 | 0.8 | 3000 |
| R2-S5 | 5.3 | 8.5 | 16.8 | 12.6 | 4.8 | 3.9 | 2.3 | 0.8 | 3000 |
| R2-6 | 6.4 | 12.0 | 21.8 | 15.8 | 4.8 | 3.9 | 2.3 | 0.8 | 2000 |
| R2-8 | 8.4 | 12.0 | 21.8 | 15.8 | 4.8 | 3.9 | 2.3 | 0.8 | 2000 |
| ITEM NO | d2Ø | B | L | A | E | DØ | dØ | T | BOX |
| R3.5-4 | 4.3 | 8.0 | 17.3 | 13.3 | 6.5 | 5.0 | 3.2 | 0.9 | 5000 |
| R3.5-5 | 5.3 | 8.0 | 17.3 | 13.3 | 6.5 | 5.0 | 3.2 | 0.9 | 5000 |
| R3.5-6 | 6.4 | 12.0 | 23.0 | 17.0 | 6.5 | 5.0 | 3.2 | 0.9 | 3000 |
| R3.5-8 | 8.4 | 15.0 | 27.7 | 20.2 | 6.5 | 5.0 | 3.2 | 0.9 | 2000 |
| R3.5-10 | 10.4 | 15.0 | 27.7 | 20.2 | 6.5 | 5.0 | 3.2 | 0.9 | 2000 |
| ITEM NO | d2Ø | B | L | A | E | DØ | dØ | T | BOX |
| R5.5-S4 | 4.3 | 7.2 | 15.7 | 12.1 | 6.8 | 5.5 | 3.5 | 1.0 | 4000 |
| R5.5-4 | 4.3 | 9.5 | 19.8 | 15.1 | 6.8 | 5.5 | 3.5 | 1.0 | 4000 |
| R5.5-5 | 5.3 | 9.5 | 19.8 | 15.1 | 6.8 | 5.5 | 3.5 | 1.0 | 4000 |
| R5.5-6 | 6.4 | 12.0 | 25.8 | 19.8 | 6.8 | 5.5 | 3.5 | 1.0 | 2500 |
| R5.5-8 | 8.4 | 15.0 | 28.0 | 20.5 | 6.8 | 5.5 | 3.5 | 1.0 | 2000 |
| R5.5-10 | 10.4 | 15.0 | 28.0 | 20.5 | 6.8 | 5.5 | 3.5 | 1.0 | 2000 |
| ITEM NO | d2Ø | B | L | A | E | DØ | dØ | T | BOX |
| R8-S5 | 5.3 | 9.0 | 22.0 | 17.5 | 8.5 | 6.9 | 4.5 | 1.0 | 2000 |
| R8-5 | 5.3 | 12.0 | 23.5 | 17.5 | 8.5 | 6.9 | 4.5 | 1.0 | 2000 |
| R8-6 | 6.4 | 12.0 | 23.5 | 17.5 | 8.5 | 6.9 | 4.5 | 1.0 | 2000 |
| R8-8 | 8.4 | 15.0 | 29.8 | 22.3 | 8.5 | 6.9 | 4.5 | 1.0 | 1500 |
| R8-10 | 10.4 | 15.0 | 29.8 | 22.3 | 8.5 | 6.9 | 4.5 | 1.0 | 1500 |
| R8-12 | 13.0 | 20.0 | 33.5 | 23.5 | 8.5 | 6.9 | 4.5 | 1.0 | 1000 |
| R8-16 | 17.0 | 25.0 | 42.0 | 29.5 | 8.5 | 6.9 | 4.5 | 1.2 | 800 |
| R8-20 | 21.0 | 30.0 | 48.5 | 33.5 | 8.5 | 6.9 | 4.5 | 1.2 | 600 |
| R8-22 | 23.0 | 30.0 | 48.5 | 33.5 | 8.5 | 6.9 | 4.5 | 1.2 | 600 |
| R8-24 | 25.0 | 36.0 | 51.5 | 33.5 | 8.5 | 6.9 | 4.5 | 1.2 | |
| R8-30 | 31.0 | 48.0 | 63.0 | 39.0 | 8.5 | 6.9 | 4.5 | 1.2 | |
| R8-36 | 37.0 | 48.0 | 63.0 | 39.0 | 8.5 | 6.9 | 4.5 | 1.2 |
| ITEM NO | d2Ø | B | L | A | E | DØ | dØ | T | BOX |
| R14-S5 | 5.4 | 9.5 | 26.5 | 21.5 | 10.0 | 8.8 | 5.8 | 1.2 | 1000 |
| R14-6 | 6.4 | 12.0 | 27.5 | 21.5 | 10.0 | 8.8 | 5.8 | 1.2 | 1000 |
| R14-S8 | 8.4 | 14.0 | 31.0 | 22.0 | 10.0 | 8.8 | 5.8 | 1.2 | 1000 |
| R14-S10 | 10.4 | 14.0 | 31.0 | 22.0 | 10.0 | 8.8 | 5.8 | 1.2 | 1000 |
| R14-12 | 13.0 | 22.0 | 40.0 | 29.0 | 10.0 | 8.8 | 5.8 | 1.2 | 1000 |
| R14-16 | 17.0 | 22.0 | 40.0 | 29.0 | 10.0 | 8.8 | 5.8 | 1.5 | 1000 |
| R14-20 | 21.0 | 30.0 | 48.5 | 33.5 | 10.0 | 8.8 | 5.8 | 1.5 | 600 |
| R14-22 | 23.0 | 30.0 | 48.5 | 33.5 | 10.0 | 8.8 | 5.8 | 1.5 | 600 |
| R14-24 | 25.0 | 36.0 | 51.5 | 33.5 | 10.0 | 8.8 | 5.8 | 1.5 |
| ITEM NO | d2Ø | B | L | A | E | DØ | dØ | T | BOX |
| R22-S6 | 6.4 | 13.5 | 32.5 | 25.5 | 12.0 | 11.3 | 7.7 | 1.4 | 800 |
| R22-S8 | 8.4 | 13.5 | 32.5 | 25.5 | 12.0 | 11.3 | 7.7 | 1.4 | 800 |
| R22-S10 | 10.4 | 16.5 | 33.7 | 25.5 | 12.0 | 11.3 | 7.7 | 1.4 | 800 |
| R22-6 | 6.4 | 16.5 | 33.7 | 25.5 | 12.0 | 11.3 | 7.7 | 1.4 | 500 |
| R22-8 | 8.4 | 16.5 | 33.7 | 25.5 | 12.0 | 11.3 | 7.7 | 1.4 | 500 |
| R22-12 | 13.0 | 22.0 | 42.5 | 31.5 | 12.0 | 11.3 | 7.7 | 1.4 | 400 |
| ITEM NO | d2Ø | B | L | A | E | DØ | dØ | T | BOX |
| R30-8 | 8.4 | 14.0 | 33.0 | 26.0 | 12.0 | 12.3 | 9.0 | 1.4 | 500 |
| R30-10 | 10.4 | 14.0 | 33.0 | 26.0 | 12.0 | 12.3 | 9.0 | 1.4 | 500 |
| R38-S6 | 6.4 | 15.0 | 38.0 | 30.5 | 14.0 | 12.6 | 9.8 | 1.4 | 400 |
| R38-S8 | 8.4 | 15.0 | 38.0 | 30.5 | 14.0 | 12.6 | 9.8 | 1.4 | 400 |
| R38-S10 | 10.4 | 15.0 | 38.0 | 30.5 | 14.0 | 12.6 | 9.8 | 1.4 | 400 |
| R38-6 | 6.4 | 22.0 | 41.5 | 30.5 | 14.0 | 12.6 | 9.8 | 1.4 | 400 |
| R38-8 | 8.4 | 22.0 | 41.5 | 30.5 | 14.0 | 12.6 | 9.8 | 1.4 | 300 |
| R38-10 | 10.4 | 22.0 | 41.5 | 30.5 | 14.0 | 12.6 | 9.8 | 1.4 | 300 |
| R38-12 | 13.0 | 22.0 | 41.5 | 30.5 | 14.0 | 12.6 | 9.8 | 1.4 | 300 |
| ITEM NO | d2Ø | B | L | A | E | DØ | dØ | T | BOX |
| R50-12 | 13.0 | 18.0 | 43.0 | 34.0 | 15.0 | 14.0 | 11.0 | 1.5 | 300 |
| ITEM NO | d2Ø | B | L | A | E | DØ | dØ | T | BOX |
| R60-8 | 8.4 | 22.0 | 49.7 | 38.7 | 18.0 | 15.4 | 11.4 | 1.6 | 200 |
| R60-10 | 10.4 | 22.0 | 49.7 | 38.7 | 18.0 | 15.4 | 11.4 | 1.6 | 200 |
| R60-12 | 13.0 | 22.0 | 49.7 | 38.7 | 18.0 | 15.4 | 11.4 | 1.6 | 200 |
| ITEM NO | d2Ø | B | L | A | E | DØ | dØ | T | BOX |
| R70-8 | 8.4 | 24.0 | 51.0 | 39.0 | 19.0 | 17.3 | 13.3 | 1.7 | 150 |
| R70-10 | 10.4 | 24.0 | 51.0 | 39.0 | 19.0 | 17.3 | 13.3 | 1.7 | 150 |
| R70-12 | 13.0 | 24.0 | 51.0 | 39.0 | 19.0 | 17.3 | 13.3 | 1.7 | 150 |
| R70-16 | 17.0 | 32.0 | 61.0 | 45.0 | 19.0 | 17.3 | 13.3 | 1.7 | 150 |
| ITEM NO | d2Ø | B | L | A | E | DØ | dØ | T | BOX |
| R80-8 | 8.4 | 27.0 | 52.8 | 39.0 | 19.0 | 19.1 | 14.5 | 1.9 | 150 |
| R80-10 | 10.4 | 27.0 | 52.8 | 39.0 | 19.0 | 19.1 | 14.5 | 1.9 | 150 |
| R80-12 | 13.0 | 27.0 | 52.8 | 39.0 | 19.0 | 19.1 | 14.5 | 1.9 | 150 |
| ITEM NO | d2Ø | B | L | A | E | DØ | dØ | T | BOX |
| R100-8 | 8.4 | 28.5 | 53.5 | 41.3 | 21.0 | 21.6 | 16.4 | 2.1 | 100 |
| R100-10 | 10.4 | 28.5 | 53.5 | 41.3 | 21.0 | 21.6 | 16.4 | 2.1 | 100 |
| R100-12 | 13.0 | 28.5 | 53.5 | 41.3 | 21.0 | 21.6 | 16.4 | 2.1 | 100 |
| ITEM NO | d2Ø | B | L | A | E | DØ | dØ | T | BOX |
| R125-10 | 10.4 | 28.5 | 58.0 | 44.0 | 23.0 | 22.8 | 18.2 | 2.3 | 100 |
| R125-12 | 13.0 | 28.5 | 58.0 | 44.0 | 23.0 | 22.8 | 18.2 | 2.3 | 100 |
| ITEM NO | d2Ø | B | L | A | E | DØ | dØ | T | BOX |
| R150-10 | 10.4 | 36.0 | 66.0 | 50.0 | 27.0 | 25.5 | 20.3 | 2.6 | 75 |
| R150-12 | 13.0 | 36.0 | 66.0 | 50.0 | 27.0 | 25.5 | 20.3 | 2.6 | 75 |
| R150-16 | 17.0 | 36.0 | 66.0 | 50.0 | 27.0 | 25.5 | 20.3 | 2.6 | 75 |
| ITEM NO | d2Ø | B | L | A | E | DØ | dØ | T | BOX |
| R180-10 | 10.4 | 38.5 | 69.0 | 53.0 | 28.5 | 27.2 | 21.8 | 2.7 | 60 |
| R180-12 | 13.0 | 38.5 | 69.0 | 53.0 | 28.5 | 27.2 | 21.8 | 2.7 | 60 |
| R180-16 | 17.0 | 38.5 | 69.0 | 53.0 | 28.5 | 27.2 | 21.8 | 2.7 | 60 |
| ITEM NO | d2Ø | B | L | A | E | DØ | dØ | T | BOX |
| R200(250)-10 | 10.4 | 44.0 | 72.0 | 56.0 | 31.5 | 31.5 | 24.9 | 3.3 | 50 |
| R200(250)-12 | 13.0 | 44.0 | 72.0 | 56.0 | 31.5 | 31.5 | 24.9 | 3.3 | 50 |
| R200(250)-16 | 17.0 | 44.0 | 72.0 | 56.0 | 31.5 | 31.5 | 24.9 | 3.3 | 50 |
| ITEM NO | d2Ø | B | L | A | E | DØ | dØ | T | BOX |
| R325-10 | 10.4 | 50.5 | 88.0 | 69.0 | 35.5 | 36.4 | 28.6 | 3.9 | 24 |
| R325-12 | 13.0 | 50.5 | 88.0 | 69.0 | 35.5 | 36.4 | 28.6 | 3.9 | 24 |
| R325-16 | 17.0 | 50.5 | 88.0 | 69.0 | 35.5 | 36.4 | 28.6 | 3.9 | 24 |
